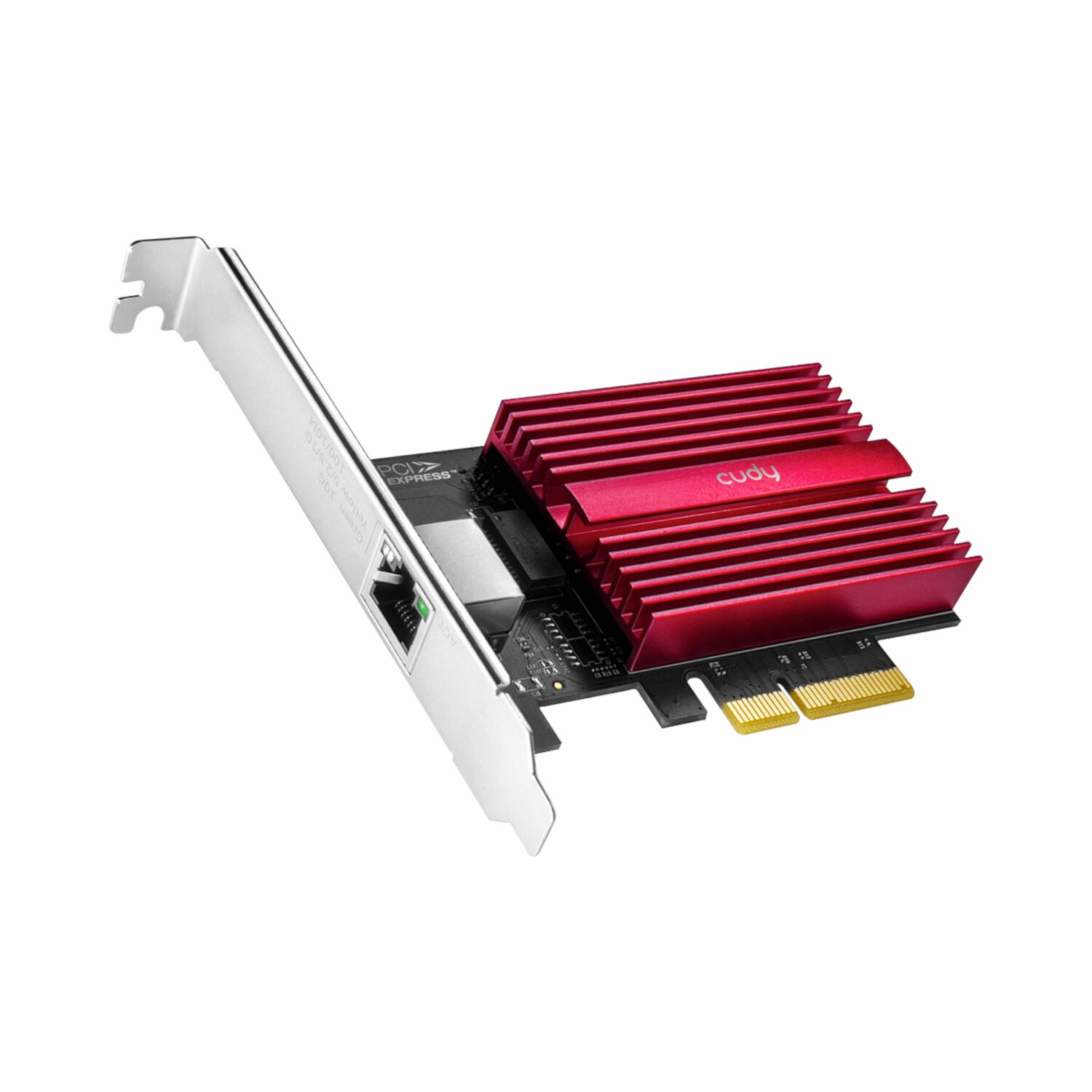

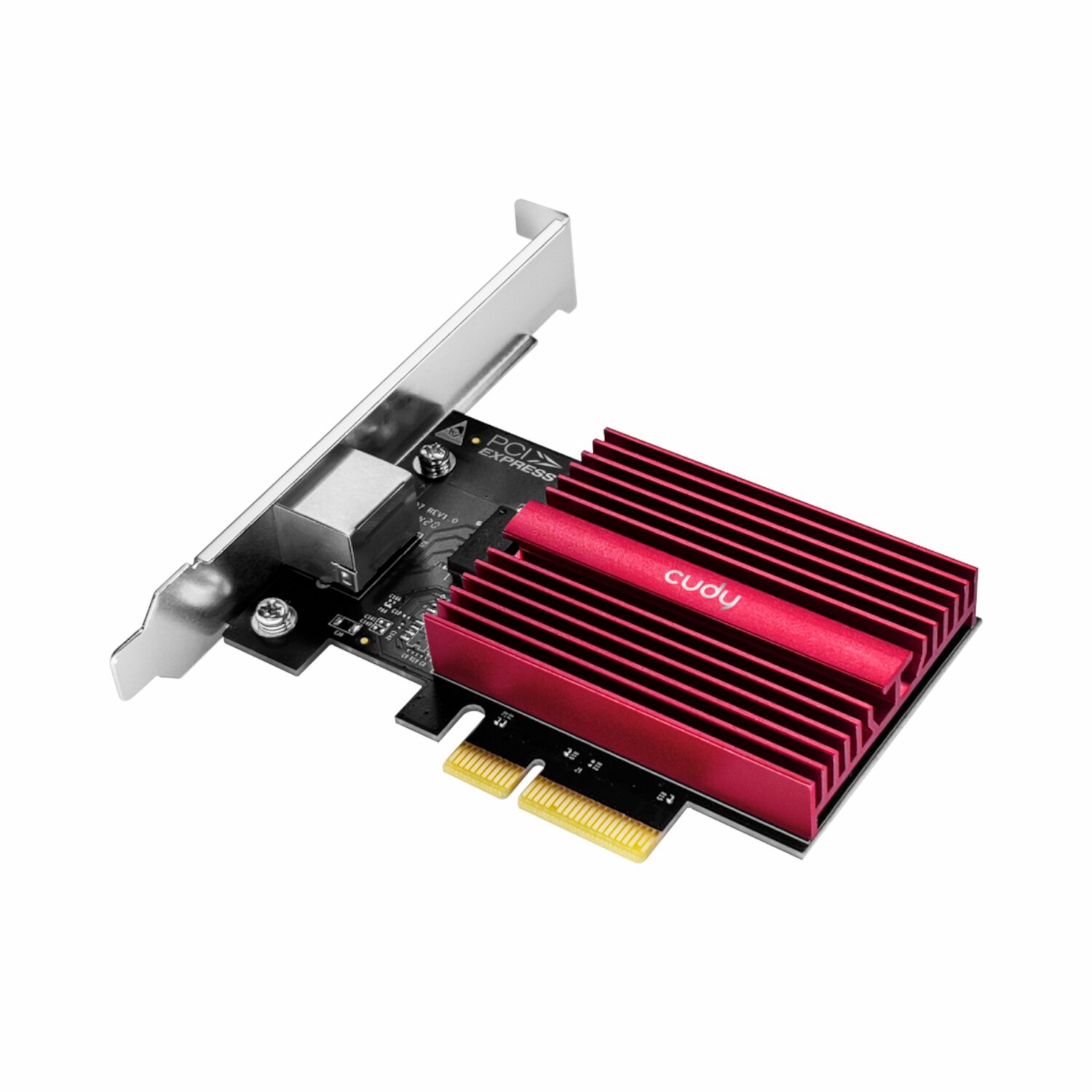

Cudy PE10G Network Adapter – 10Gbps, PCI Express

Elevate your network performance with the Cudy PE10G Network Adapter, engineered to meet the demands of high-speed data environments. This adapter is ideal for professionals and enthusiasts requiring ultra-fast connectivity for tasks such as large-scale data transfers, server hosting, and seamless media editing on Network Attached Storage (NAS) systems. By integrating the PE10G into your setup, you can achieve download speeds up to 10 Gbps, significantly reducing latency and enhancing overall workflow efficiency.

Designed for versatility, the PE10G is compatible with PCI-E x4, x8, and x16 slots, ensuring seamless integration with a wide range of motherboards. The inclusion of both standard and low-profile brackets allows for installation in various chassis types, catering to diverse hardware configurations. Advanced features such as Energy-Efficient Ethernet (EEE) automatically optimise power consumption by transitioning the adapter into a low-power idle state during periods of minimal data activity, promoting energy savings without compromising performance.

Furthermore, the adapter’s Flow Control mechanism is instrumental in preventing packet loss and data drops when operating at peak 10 Gbps transmission rates. This is particularly crucial for maintaining reliability in server operations and surveillance systems where data integrity is paramount. With the Cudy PE10G Network Adapter, you can confidently upgrade your network capabilities to support the most demanding applications and workflows.

FEATURES:

• Energy-Efficient Ethernet (EEE)
• 10 Gigabit high-speed connectivity
• Supports PCI-E x4, x8, and x16 slots
• Includes standard and low-profile brackets for flexible installation in desktop PCs or compact chassis
• RJ45 interface with CAT6A support to deliver full 10G throughput
• Backwards compatible with 100M, 1G, and 2.5G networks

SPECIFICATIONS:

• Chipset: AQC113
• 10G RJ45 Ports: 1
• LED: Speed/Link/ACT of Ethernet Port
• 802.3 Protocols:
  • 802.3x Flow Control
  • 802.3az Power Saving
  • 802.3i 10BASE-T
  • 802.3u 100BASE-T
  • 802.3ab 1000BASE-T
  • 802.3bz 2.5GBASE-T and 5GBASE-T
  • 802.3an 10GBASE-T
• Data Rate: Auto negotiation between 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, and 10 Gbps
• Hardware Requirement: PCI-E 3.0 x4 or higher slot on the motherboard for powering and the Ethernet function
• Compatible OS: Windows 10/11 64-bit, Windows Server 2022, Linux. DSM 7.2+
• Ambient Operating Temperature: 0 ℃ ~ 65 ℃
• Storage Temperature: -40 ℃ ~ 70 ℃
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
• Certifications:FCC, CE
• Main Part Dimension (without the bracket): 10 × 6.6 × 1.5 cm
• Product Weight: 84.5 g

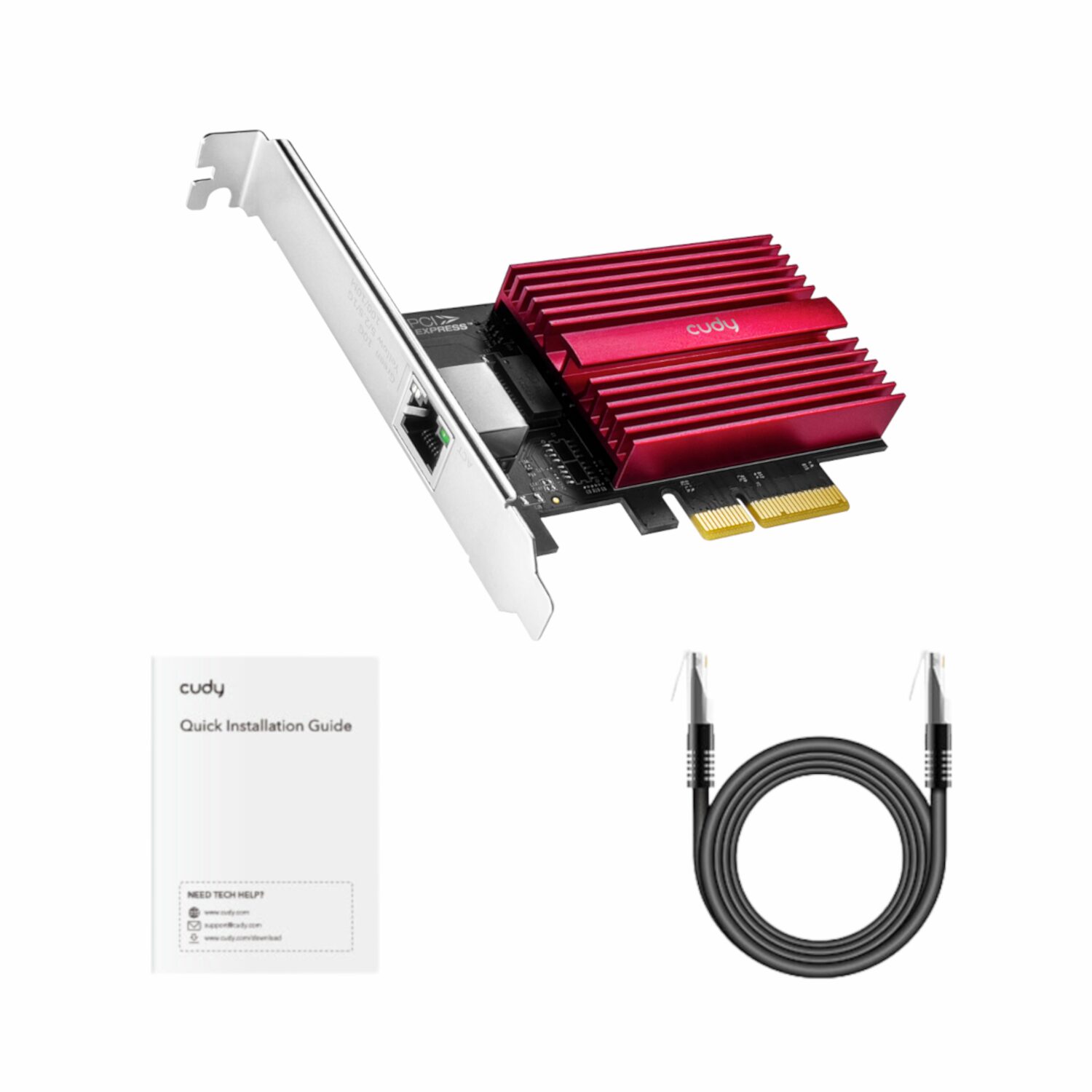

WHAT’S IN THE BOX:

• Cudy PE10G Network Adapter – 10Gbps, PCI Express x1
• Low-Profile Bracket x1
• Installation Guide x1
• Ethernet Cable x1
