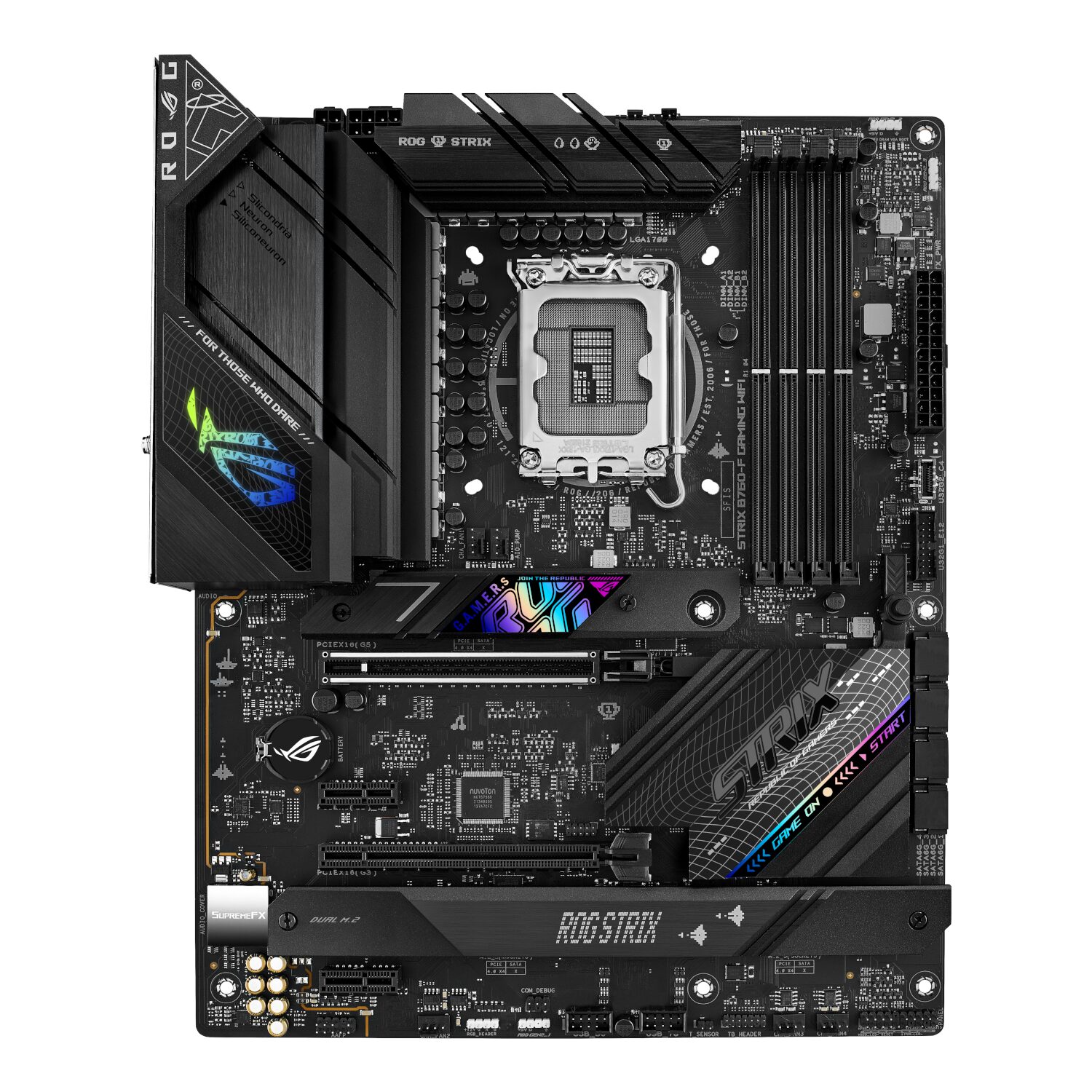

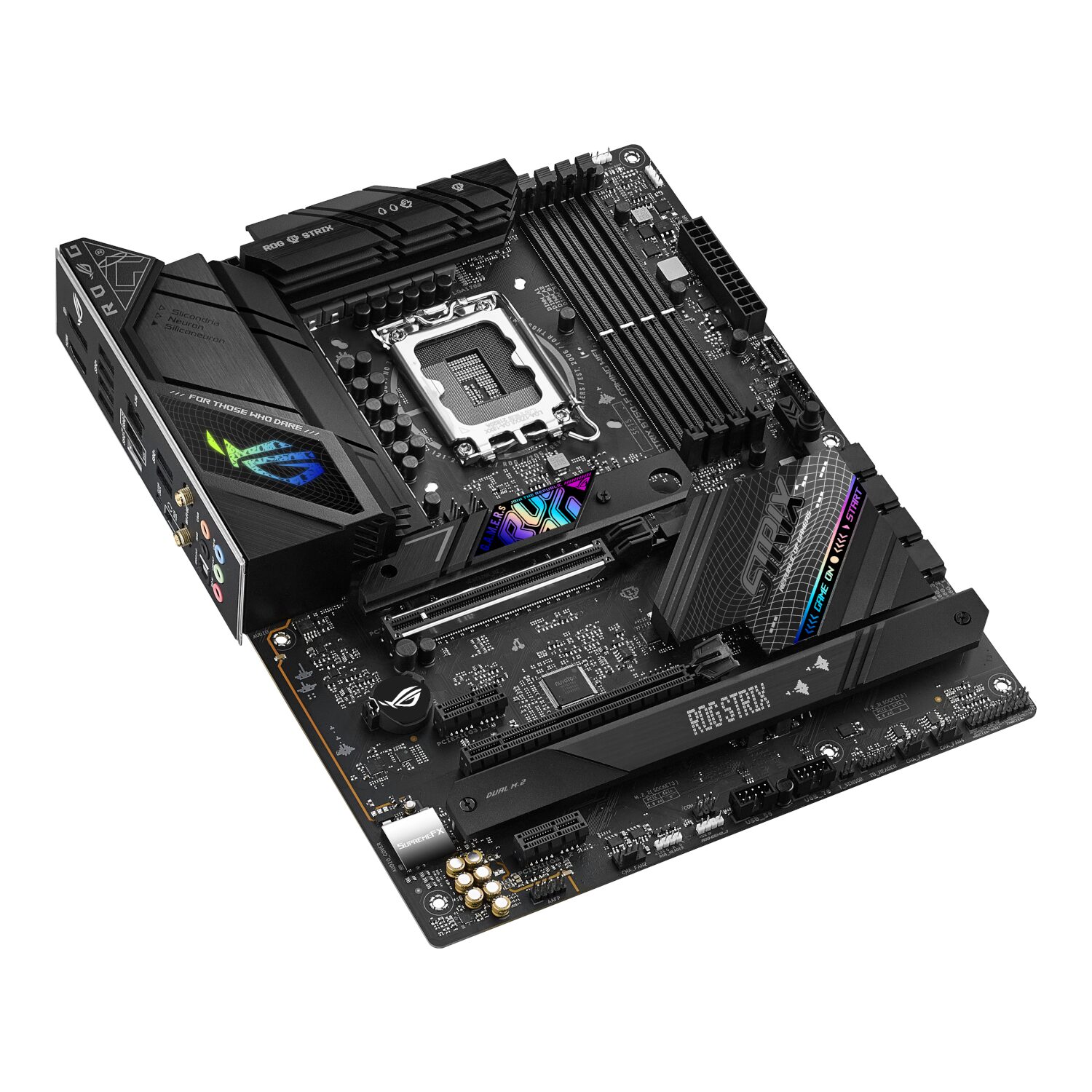

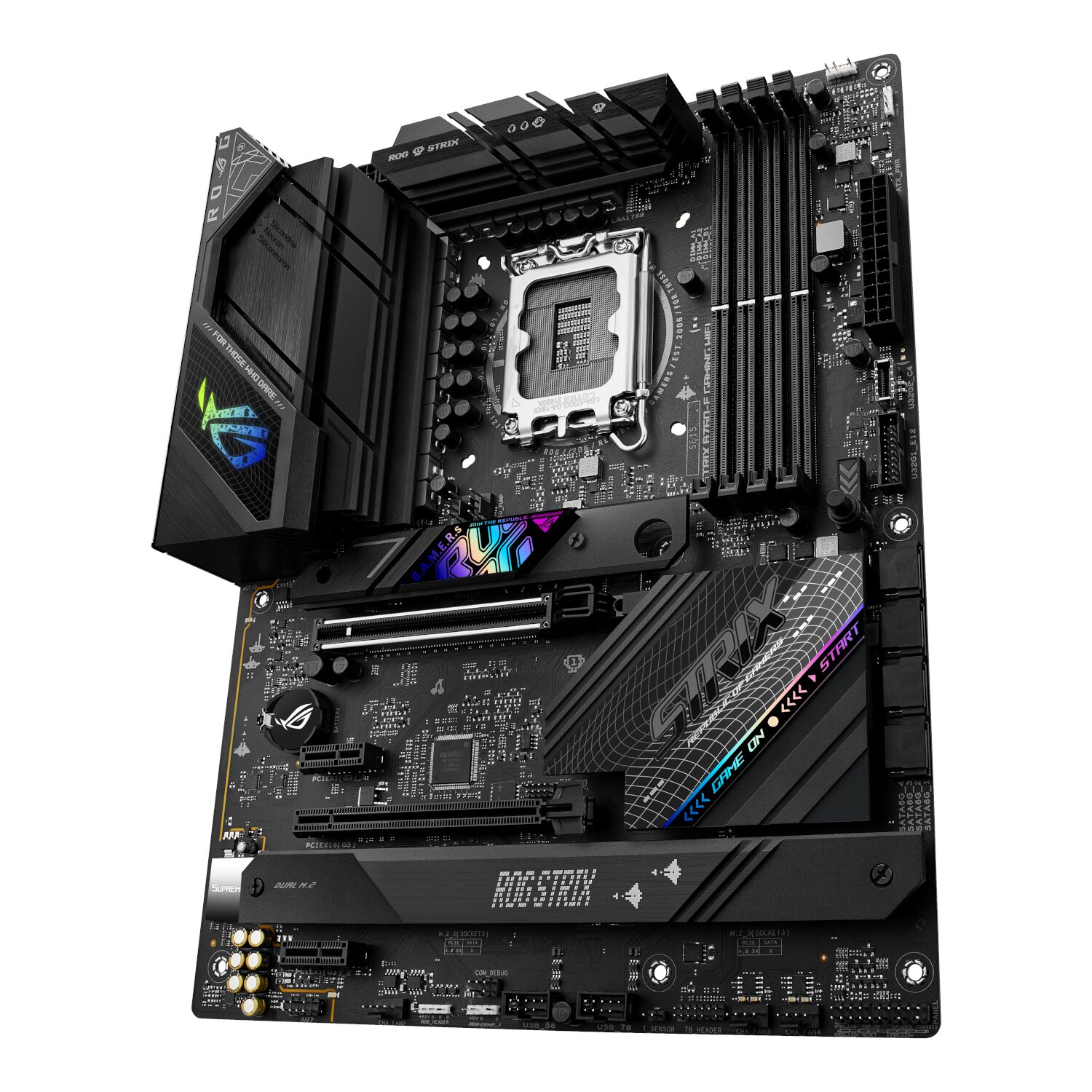

Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700

Engineered for uncompromising performance and seamless integration with next-gen hardware, the Asus ROG Strix B760-F Gaming WiFi motherboard is the ideal foundation for gamers, creators, and PC enthusiasts. Powered by the Intel B760 chipset and compatible with 12th, 13th and 14th Gen Intel Core processors, it supports the LGA1700 socket and unleashes the full potential of Intel’s hybrid architecture.

With support for up to 128GB of ultra-fast DDR5 memory across four DIMM slots, the Asus ROG Strix B760-F Gaming Motherboard ensures accelerated multitasking, faster data handling, and superior bandwidth. PCIe 5.0 x16 graphics support offers next-level performance for the latest GPUs, while three M.2 slots with PCIe 4.0 deliver rapid storage with reduced latency and higher throughput. WiFi 6E and Intel 2.5Gb Ethernet provide ultra-reliable, low-latency networking for competitive online gaming and streaming.

Enhanced cooling is assured via large VRM heatsinks, hybrid fan headers, and M.2 heatsinks that maintain system stability during high-load operations. Advanced connectivity includes rear USB 3.2 Gen 2×2 Type-C®, front USB Type-C®, and HDMI® 2.1 and DisplayPort 1.4 outputs for modern displays. The ROG Strix B760-F Gaming also incorporates intuitive features like Q-LED diagnostic indicators, BIOS FlashBack™, and a pre-mounted I/O shield for streamlined assembly and maintenance.

Designed with bold cyberpunk-inspired styling, premium components, and Aura Sync RGB lighting, the Asus ROG Strix B760-F Gaming delivers a visually immersive and technically advanced platform for next-gen PC builds.

FEATURES;

• Intel B760 chipset with LGA1700 socket supports 12th,13th and 14th Gen Intel Core, Pentium Gold, and Celeron processors
• Up to 128GB DDR5 memory support across 4 DIMM slots, delivering faster data rates and enhanced bandwidth
• PCIe 5.0 graphics card compatibility enables ultra-fast GPU performance for high-end gaming and creative workloads
• Triple M.2 slots with PCIe 4.0 ensure high-speed NVMe SSD support for lightning-fast storage access
• Integrated WiFi 6E delivers faster wireless throughput and low-latency connectivity across 6GHz spectrum
• Intel 2.5Gb Ethernet ensures stable, high-speed wired networking for competitive gaming
• Advanced 16+1 power stages with robust capacitors and alloy chokes for stable CPU performance
• Comprehensive cooling design includes large VRM heatsinks, M.2 heatsinks, and hybrid fan headers
• USB 3.2 Gen 2×2 Type-C® supports fast data transfer and versatile peripheral connectivity
• HDMI® 2.1 and DisplayPort 1.4 high-resolution and high refresh outputs
• Q-LED diagnostic display and BIOS FlashBack™ simplify system troubleshooting and firmware updates
• Pre-mounted I/O shield and PCIe Q-Release streamlines installation and upgrades
• Customisable Aura Sync RGB lighting effects with support for multiple ARGB headers
• Striking cyberpunk design aesthetics aligned with ROG’s bold and futuristic design language

SPECIFICATIONS:

• CPU
• Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^® Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0
• Chipset: Intel^® B760 Chipset
• Memory
• 4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel^® Extreme Memory Profile (XMP)
• OptiMem II
• Graphics
• 1 x DisplayPort
• 1 x HDMI™ Port
• Expansion Slots
• Intel^® Core™ Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 5.0×16 slot (supports x16 mode)
• Intel^®�B760 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots
• Storage
• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel^® Core™ Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
• Intel^® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
  • 4 x SATA 6Gb/s ports
• Ethernet: 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
• Wireless & Bluetooth
• Wi-Fi 6E
• 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth^® v5.3
• USB
• Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 6 x USB 3.2 Gen 1 ports (6 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-bit/384 kHz playback on front panel”
• Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Audio cover

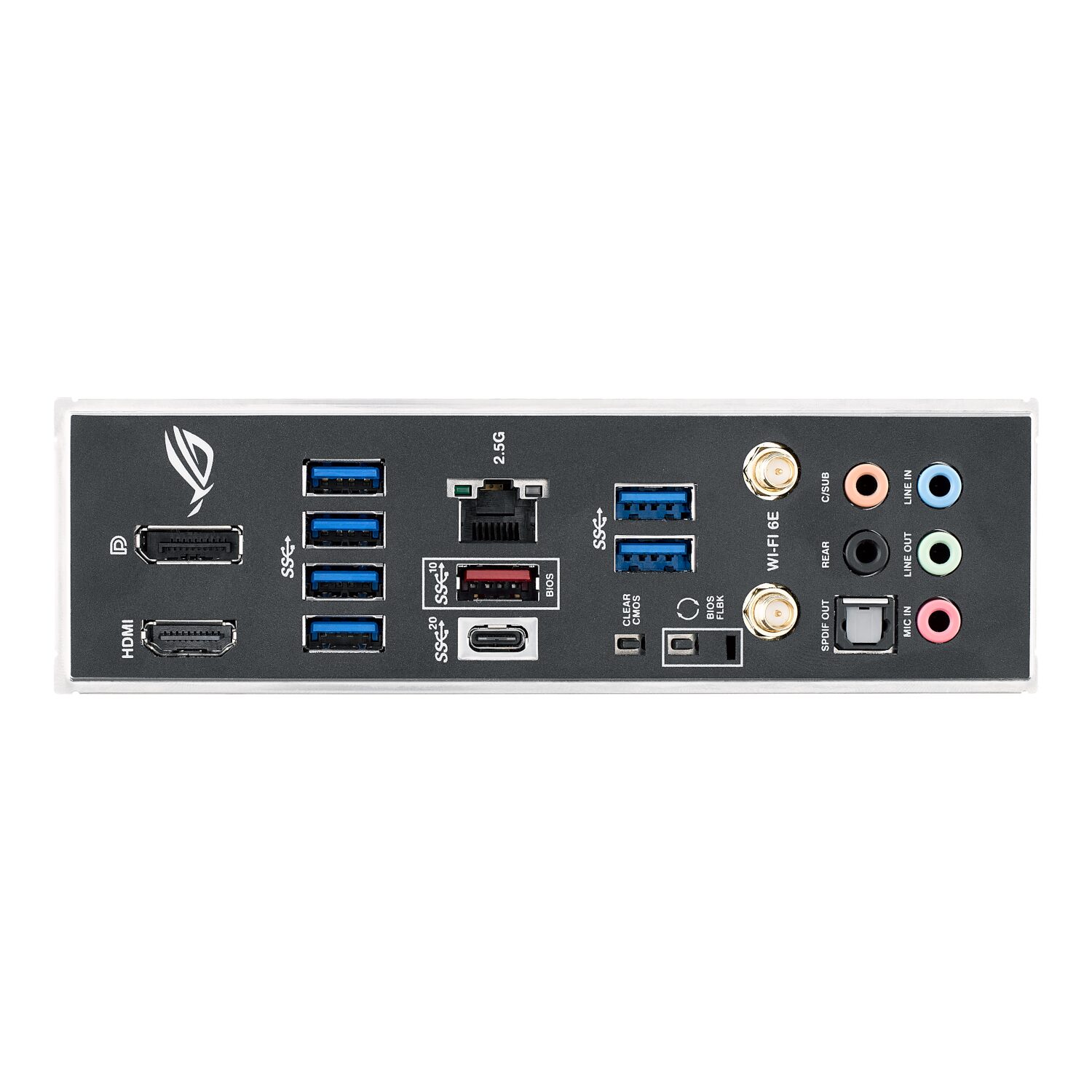

• Back Panel I/O Ports
• 1 x USB 3.2 Gen 2×2 port  (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 6 x USB 3.2 Gen 1 ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™  button
• 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3-pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 xThunderbolt™ (USB4®) header
• Special Features
• Extreme Engine Digi+
  • 5K Black Metallic Capacitors
• ASUS Q-Design
  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• Aura Sync
  • Aura RGB header
  • Addressable Gen 2 headers
• Software Features
• ROG Exclusive Software
  • GameFirst VI
  • ROG CPU-Z
  • Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • Sonic Radar III
  • DTS® Sound Unbound
• ASUS Exclusive Software
• Armoury Crate
  • AIDA64 Extreme (60-day free trial)
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4
  • Power Saving
  • Two-Way AI Noise Cancellation
• AI Suite 3
  • Performance And Power Saving Utility
  • DIGI+ VRM
  • PC Cleaner
• MyAsus
• Norton 360 for Gamers
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• MemTest86
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PM
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor
• ATX Form Factor
• Dimensions: 30.5 x 24.4 cm

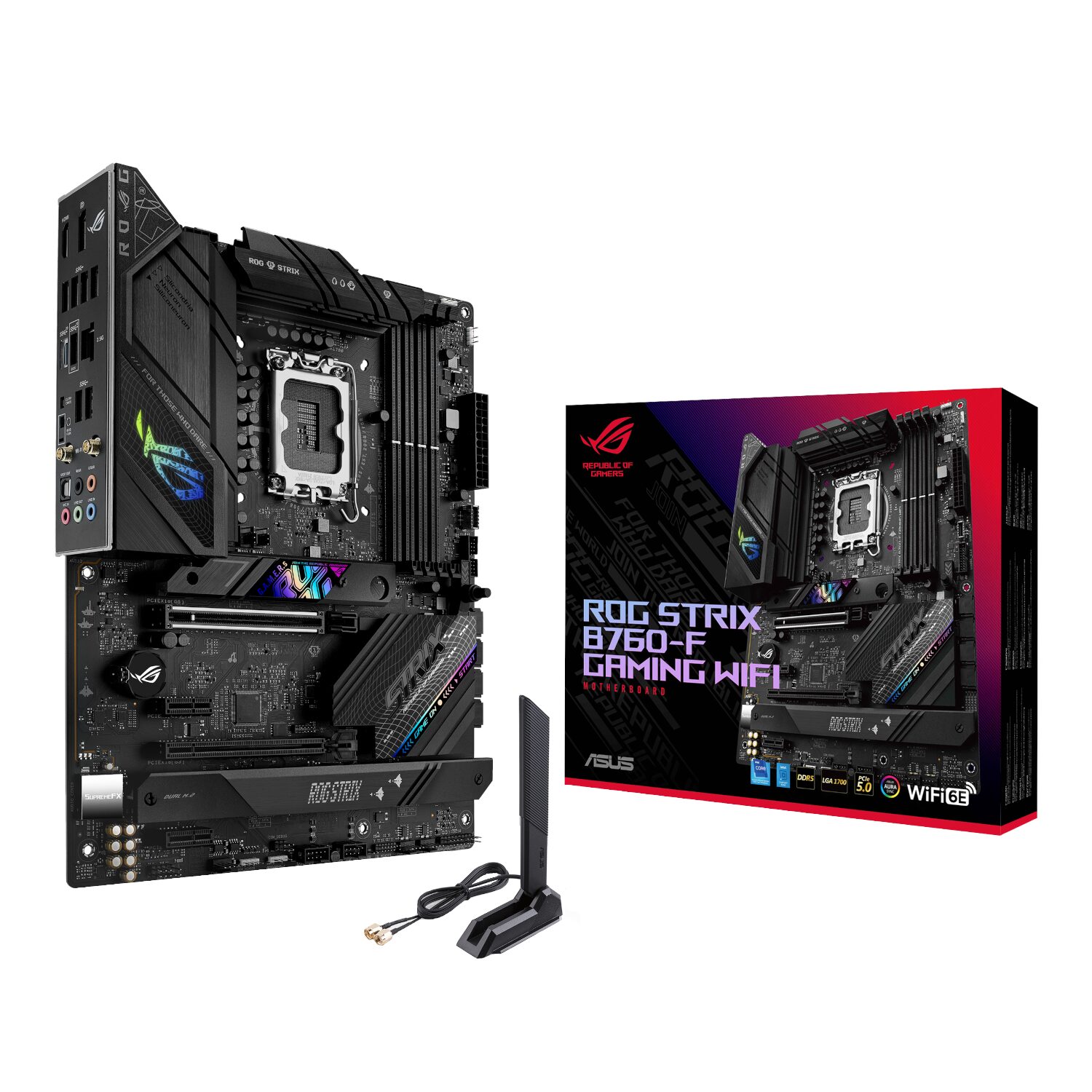

WHAT’S IN THE BOX:

• Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700 x1
• SATA 6Gb/s cables x2
• Thermal pad for M.2 x1

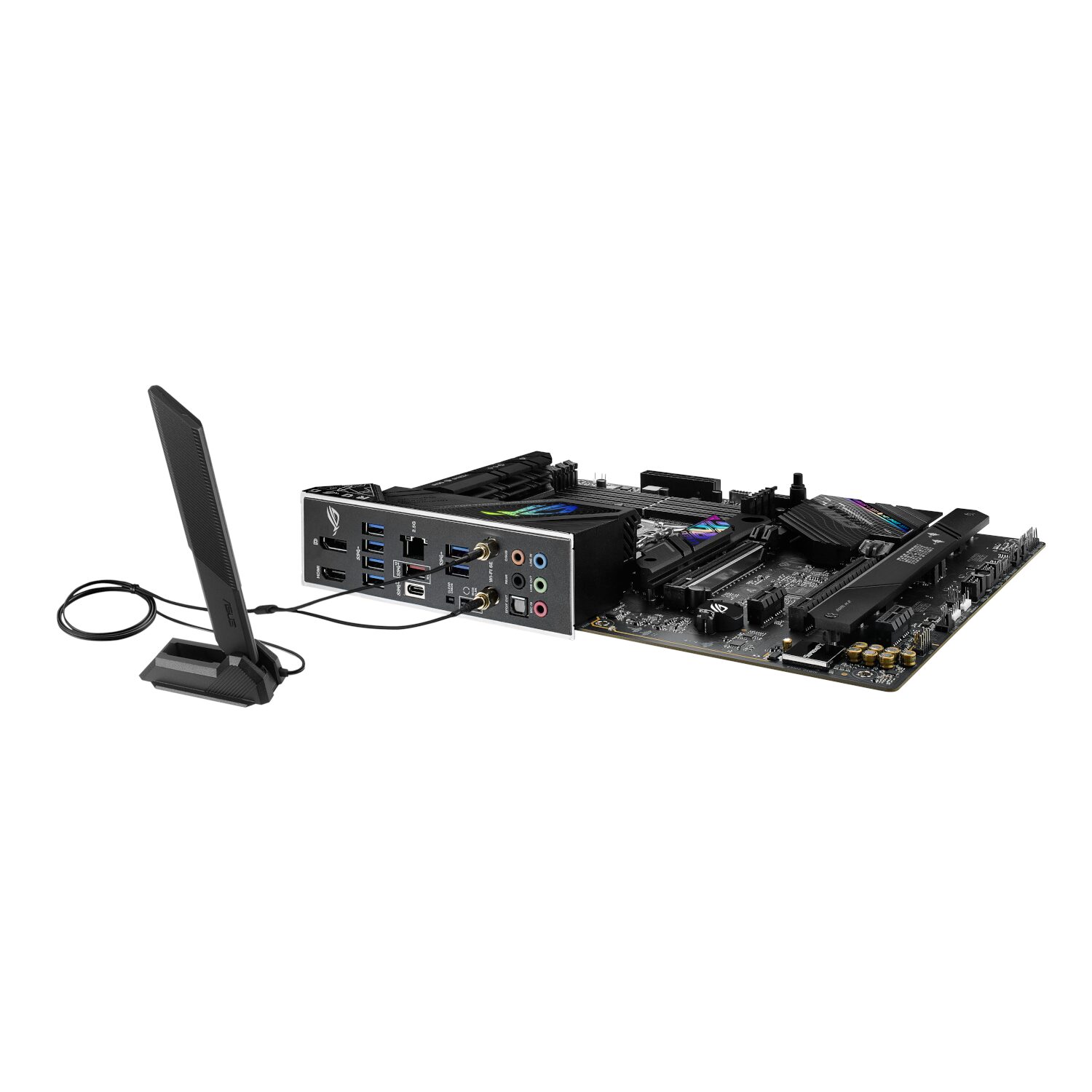

• ASUS Wi-Fi moving antennas x1
• Cable ties package x1
• M.2 Q-Latch package x1
• M.2 Rubber Package x2
• ROG key chain x1
• ROG Strix stickers x1
• ROG Strix thank you card x1
• User guide x1
