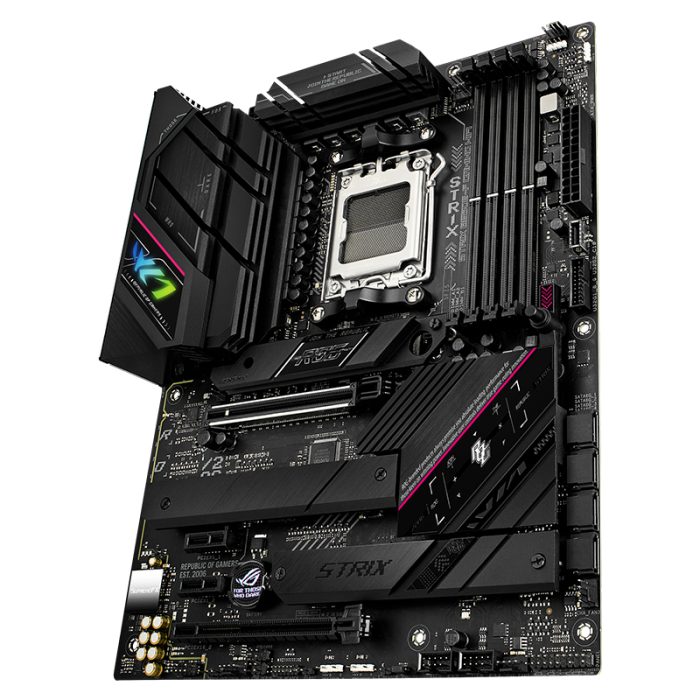

Asus ROG Strix B650E-F Gaming WIFI

The ASUS ROG Strix B650E-F Gaming WiFi motherboard is designed for next-generation gaming and high-performance computing. Powered by the AMD B650 chipset, it supports the latest AMD Ryzen 7000 Series processors and PCIe 5.0 for future-proof performance. It features robust power delivery with 12+2 teamed power stages, offering stability for demanding tasks and gaming.

With DDR5 memory support, WiFi 6E, and 2.5 Gb Ethernet, this motherboard ensures ultra-fast data speeds and a seamless wireless experience. The ROG Strix B650E-F is equipped with customizable RGB lighting via ASUS Aura Sync, adding visual flair to your build. Advanced cooling solutions, including VRM and M.2 heatsinks, keep temperatures in check even during heavy loads.

This motherboard is perfect for gamers and creators looking for reliable performance, overclocking potential, and immersive audio. With a sleek, futuristic design and comprehensive connectivity options, the ROG Strix B650E-F is built to handle the most demanding applications.

FEATURES:

• Extreme Engine Digi+
• Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Intelligent Control: ASUS-exclusive Two-Way AI Noise cancellation and AI Networking
• Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
• Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximise performance

SPECIFICATIONS:

• CPU Compatibility: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
• Chipset: AMD B650
• Form Factor: ATX
• Memory:
• DIMM slots: 4
• Memory capacity: 128GB
• Memory types: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
• Graphics: DisplayPort 1.4 x1 (Supports max. 8K@60Hz), HDMI® 2.1 Port (Supports 4K@60Hz) x1
• Expansion Slots:
• AMD Ryzen™ 7000 Series Desktop Processors: PCIe 5.0 x16 slot(s) x1
• AMD B650 Chipset: PCIe 4.0 x16 slot (supports x4 mode) x1, PCIe 4.0/3.0 x1 slots x2
• Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Ethernet: Intel® 2.5Gb Ethernet x1
• Wireless & Bluetooth: Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band.
• USB:
• Front USB: USB 3.2 Gen 2 connector (supports USB Type-C®)1 x1, USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports x1, USB 2.0 headers supports additional 4 USB 2.0 ports x2

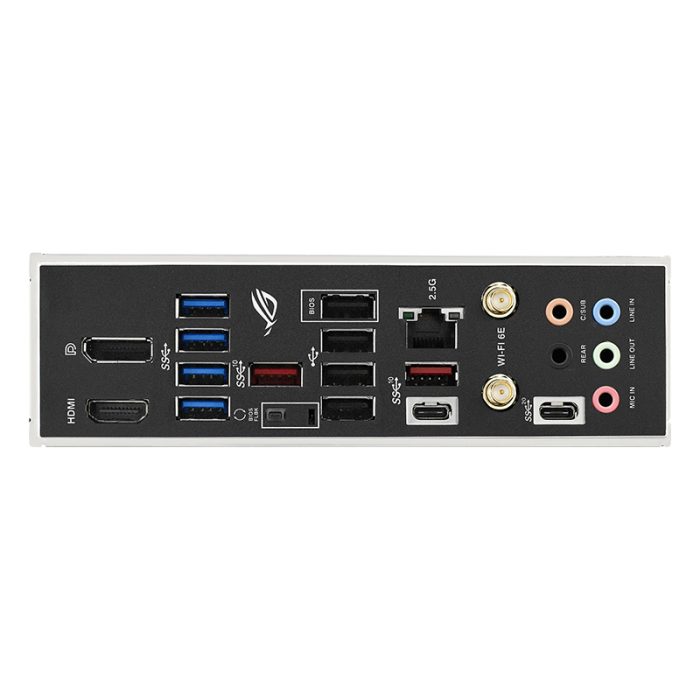

• Rear USB: USB 3.2 Gen 2×2 port (1 x USB Type-C®) x1, USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) x3, USB 3.2 Gen 1 port (4 x Type-A) x4, USB 2.0 ports (4 x Type-A) x4
• Audio: ROG SupremeFX 7.1 Surround Sound High-Definition Audio CODEC ALC4080
• Product Dimensions: 30.5 x 24.4 cm

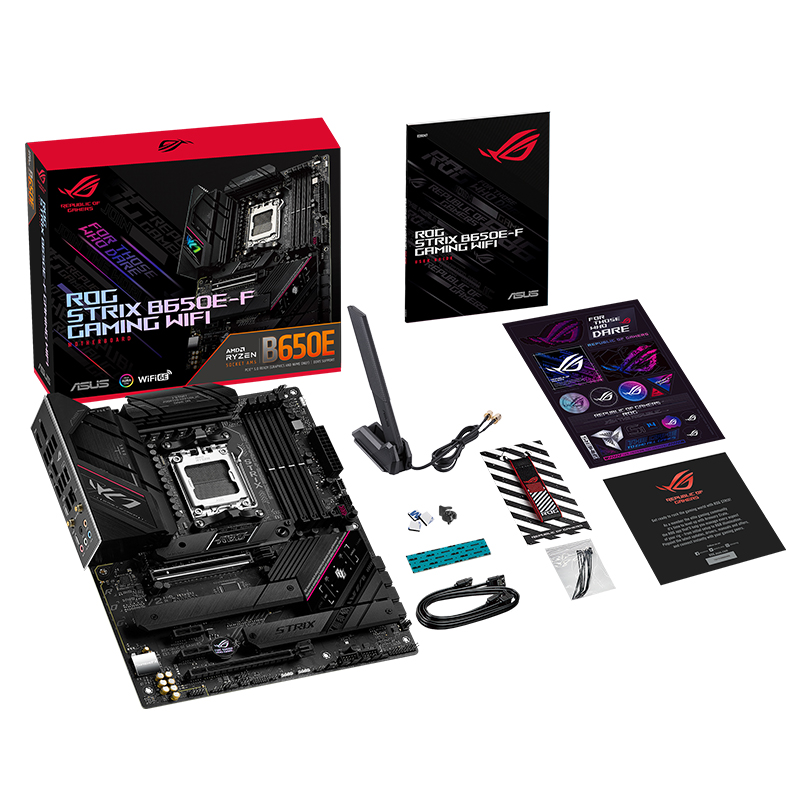

WHAT’S IN THE BOX:

• ROG STRIX B650E-F GAMING WIFI AMD AM5 ATX Gaming Motherboard – Black x1
• SATA 6Gb/s cables x2
• Thermal pad for M.2 x1
• ASUS Wi-Fi moving antennas x1
• Cable ties pack x1
• M.2 Q-Latch package x1
• ROG key chain x1
• ROG Strix stickers x1
• ROG Strix thank you card x1
• 2 Rubber Packages x2
