Asus Dual GeForce RTX 4060 EVO OC 8G GDDR6 Graphics Card

Take your gaming performance to the next level with the ASUS Dual GeForce RTX 4060 EVO OC 8GB GDDR6 Graphics Card – a purpose-built GPU engineered to deliver powerful graphics processing in a space-efficient design. Whether you’re assembling a high-performance desktop or upgrading an existing rig, this card combines premium features with robust cooling for an optimal gaming experience.

Achieve faster frame rates and smoother gameplay through NVIDIA’s Ada Lovelace architecture, the core engine behind the ASUS Dual GeForce RTX 4060 EVO OC 8GB GDDR6 Graphics Card. With 3,072 CUDA cores and 8GB of high-speed GDDR6 memory running at 17 Gbps across a 128-bit interface, this GPU is equipped to handle the latest AAA titles at 1080p and beyond.

Improve your graphics capability through 4th Generation Tensor Cores, delivering up to 4x performance with DLSS 3, allowing AI-enhanced visuals without compromising frame rates. Elevate lighting realism through 3rd Generation RT Cores, which double ray tracing performance to render immersive environments with lifelike shadows and reflections.

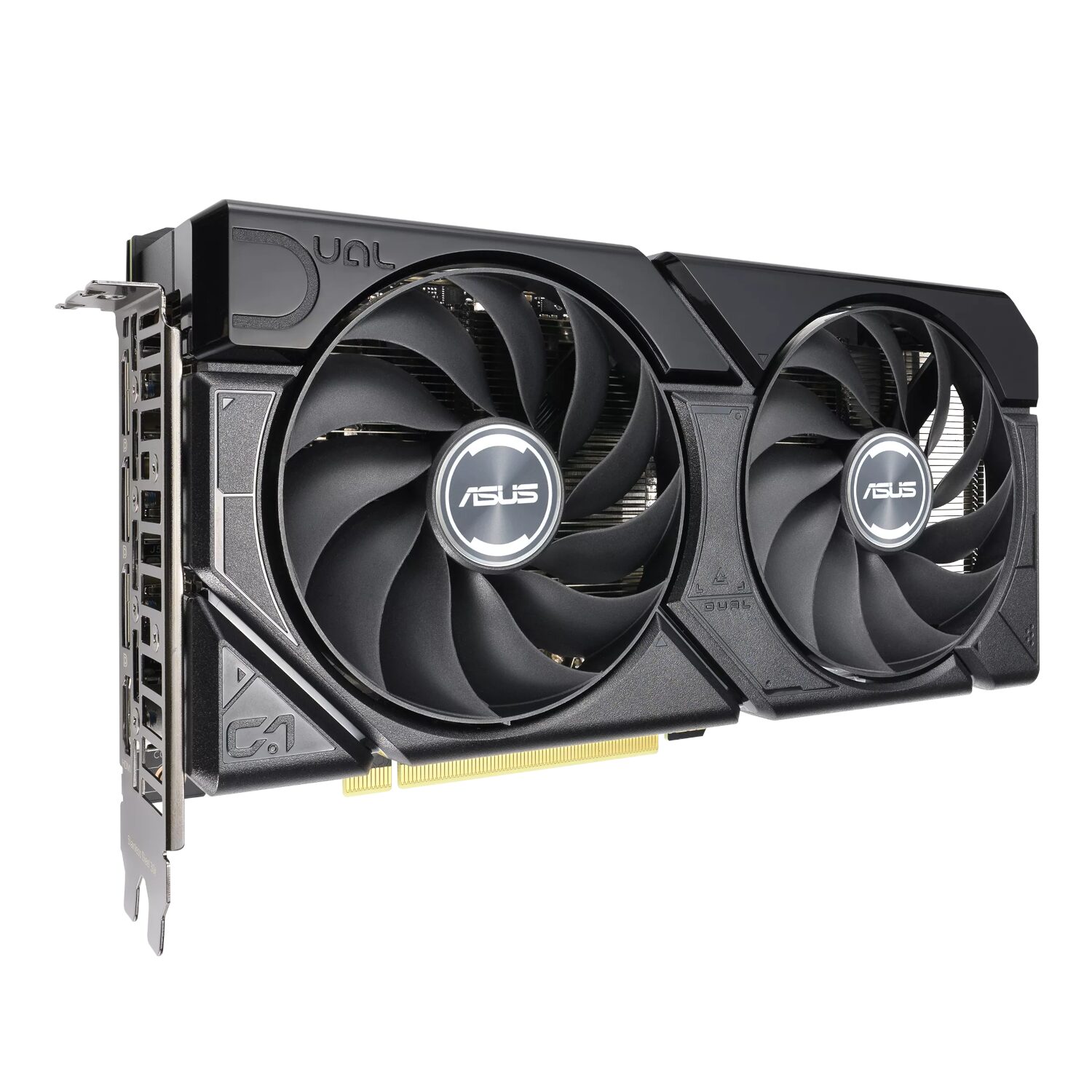

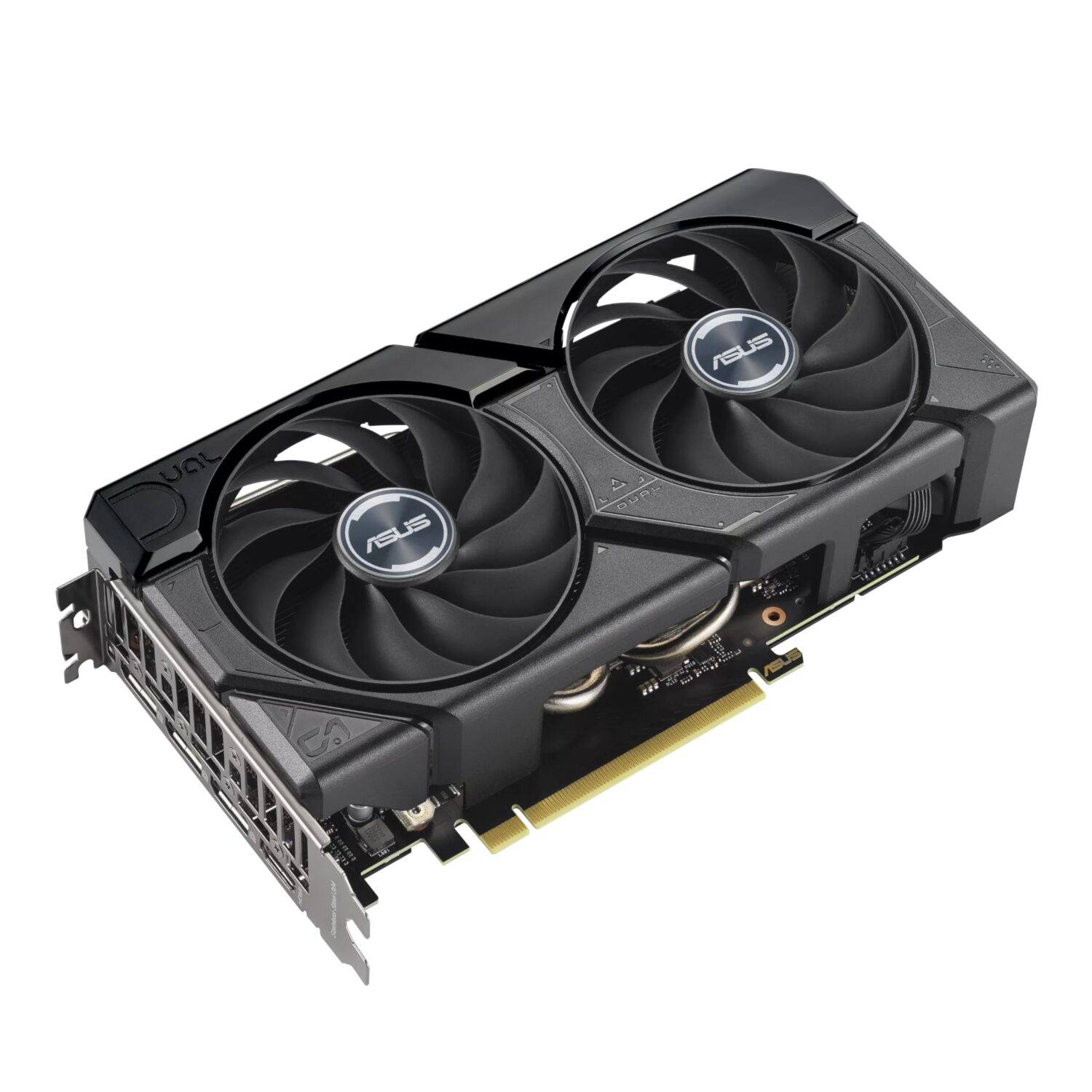

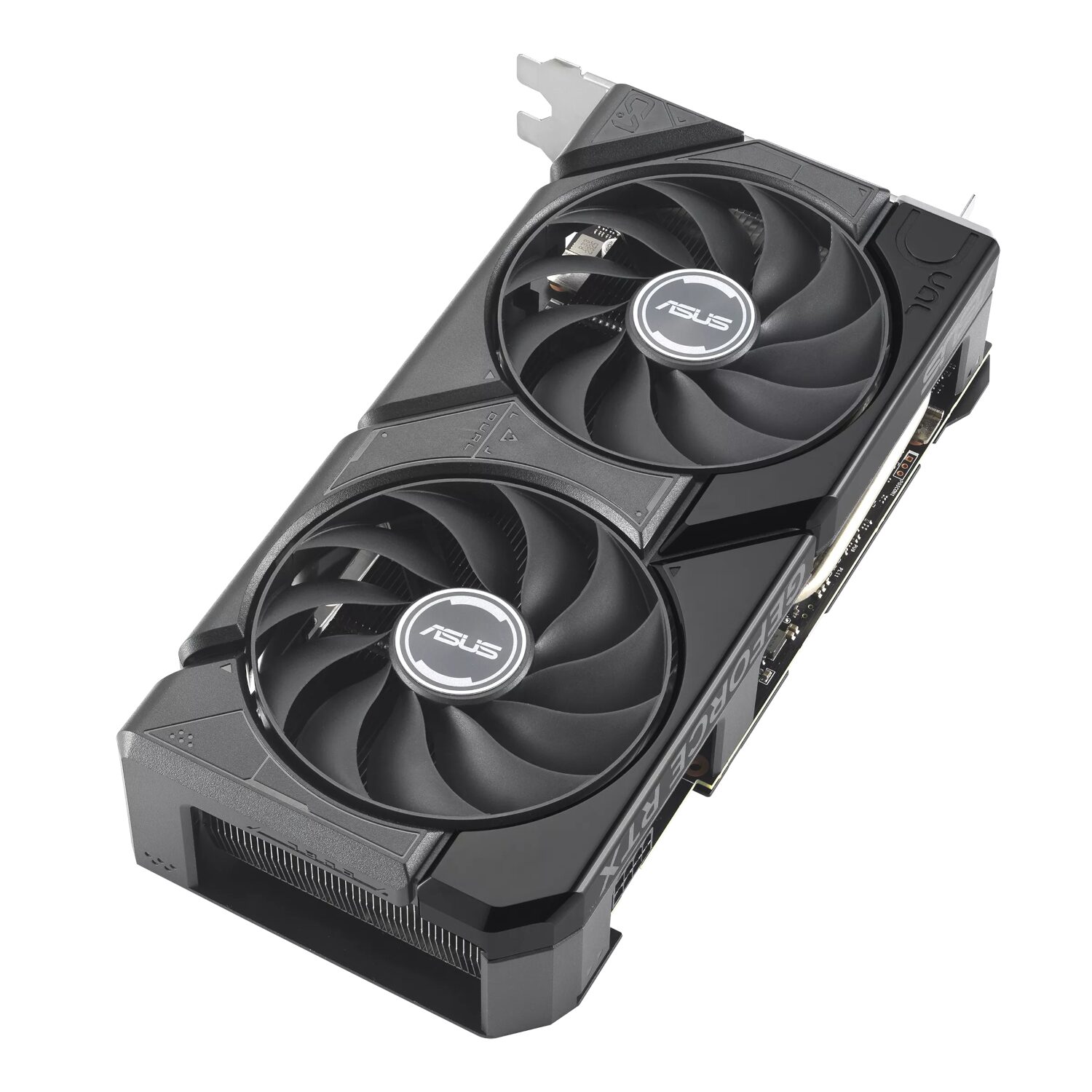

The OC Edition boosts clock speeds up to 2535 MHz in OC mode, enabling higher in-game responsiveness and smoother performance under load. This performance is sustained through dual Axial-tech fans, which increase downward air pressure for efficient heat dissipation, while 0dB technology keeps things silent during low-load operations such as media playback or lighter gaming.

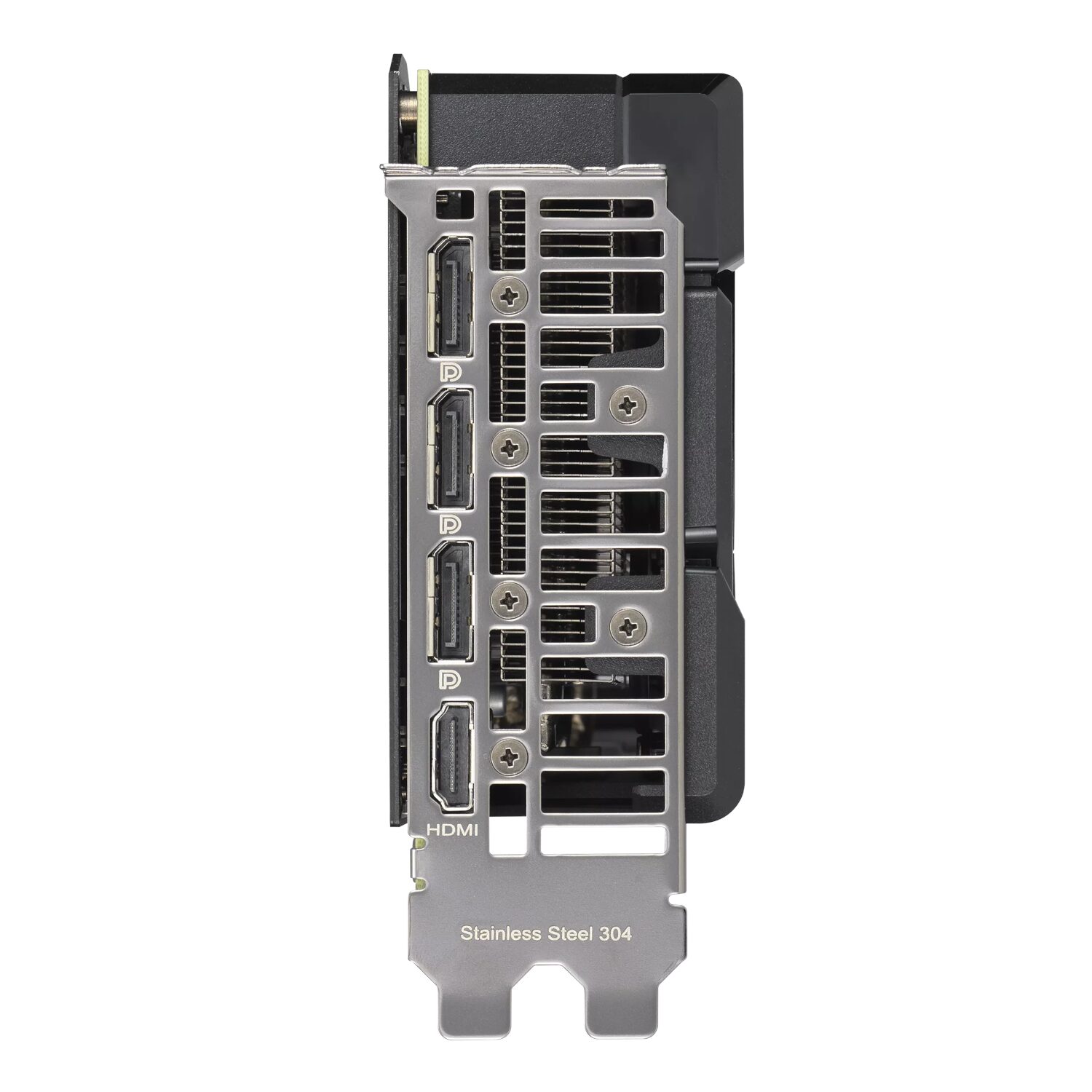

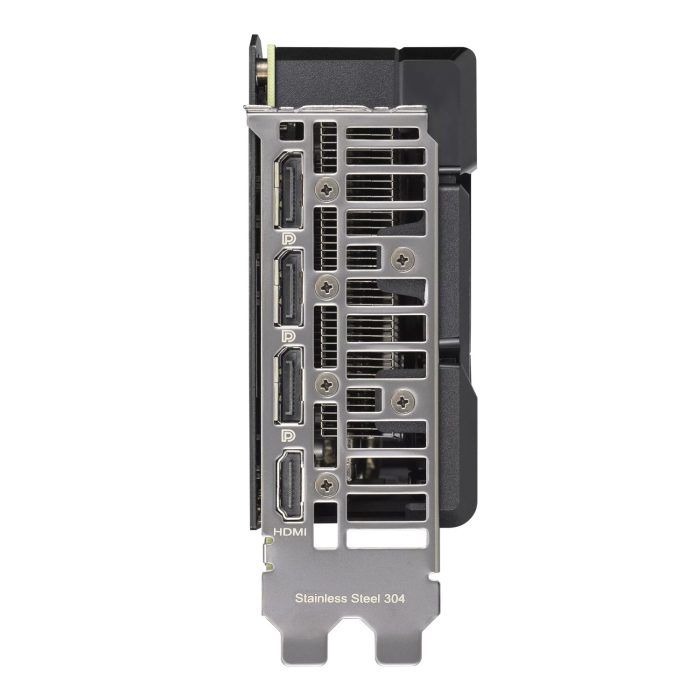

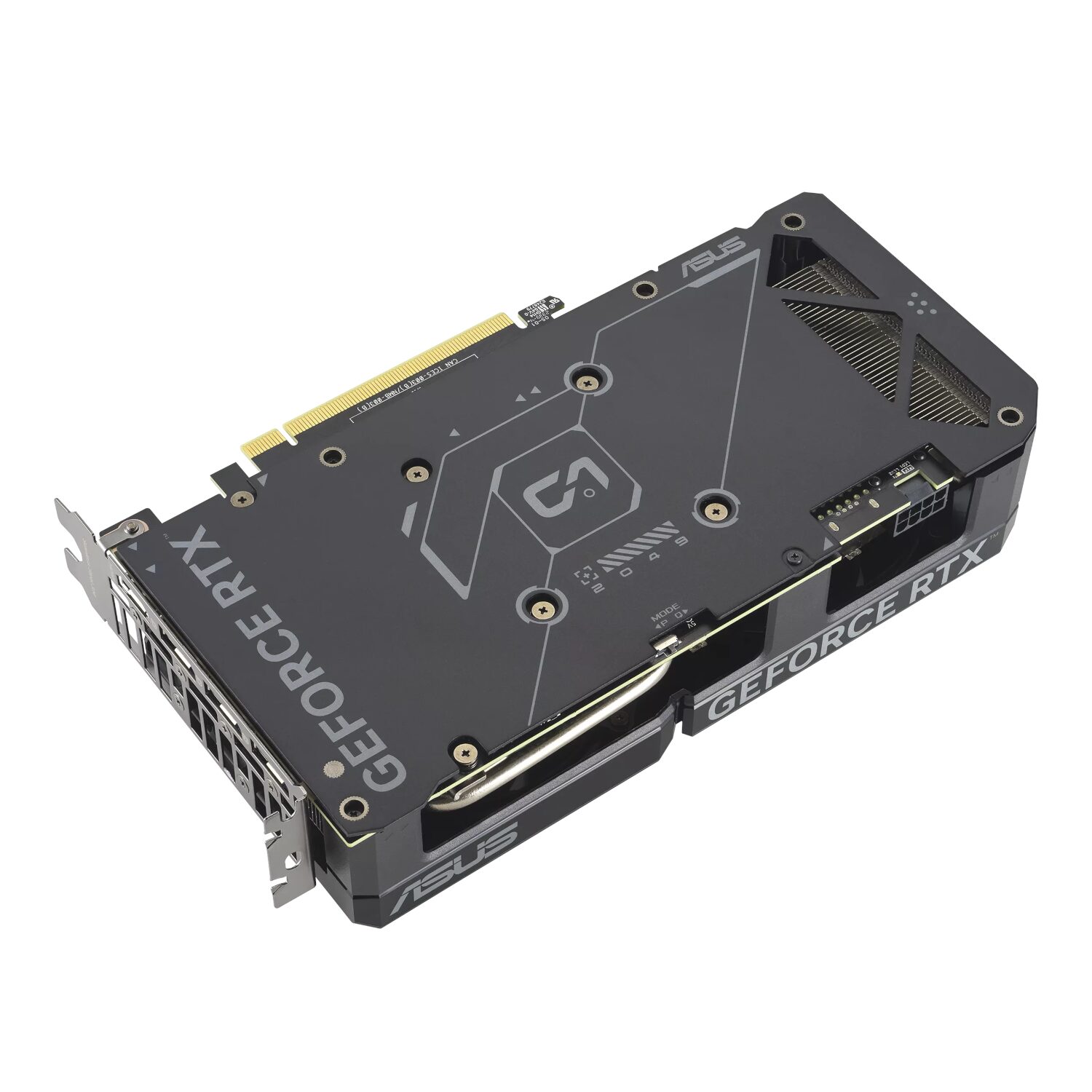

Built to endure, the ASUS Dual GeForce RTX 4060 EVO OC 8GB GDDR6 Graphics Card features dual ball fan bearings for extended operational life and a protective backplate that secures the PCB during installation or transit. The card supports up to four displays via one HDMI 2.1a and three DisplayPort 1.4a outputs, with a maximum resolution of 7680 x 4320, making it ideal for multi-monitor setups.

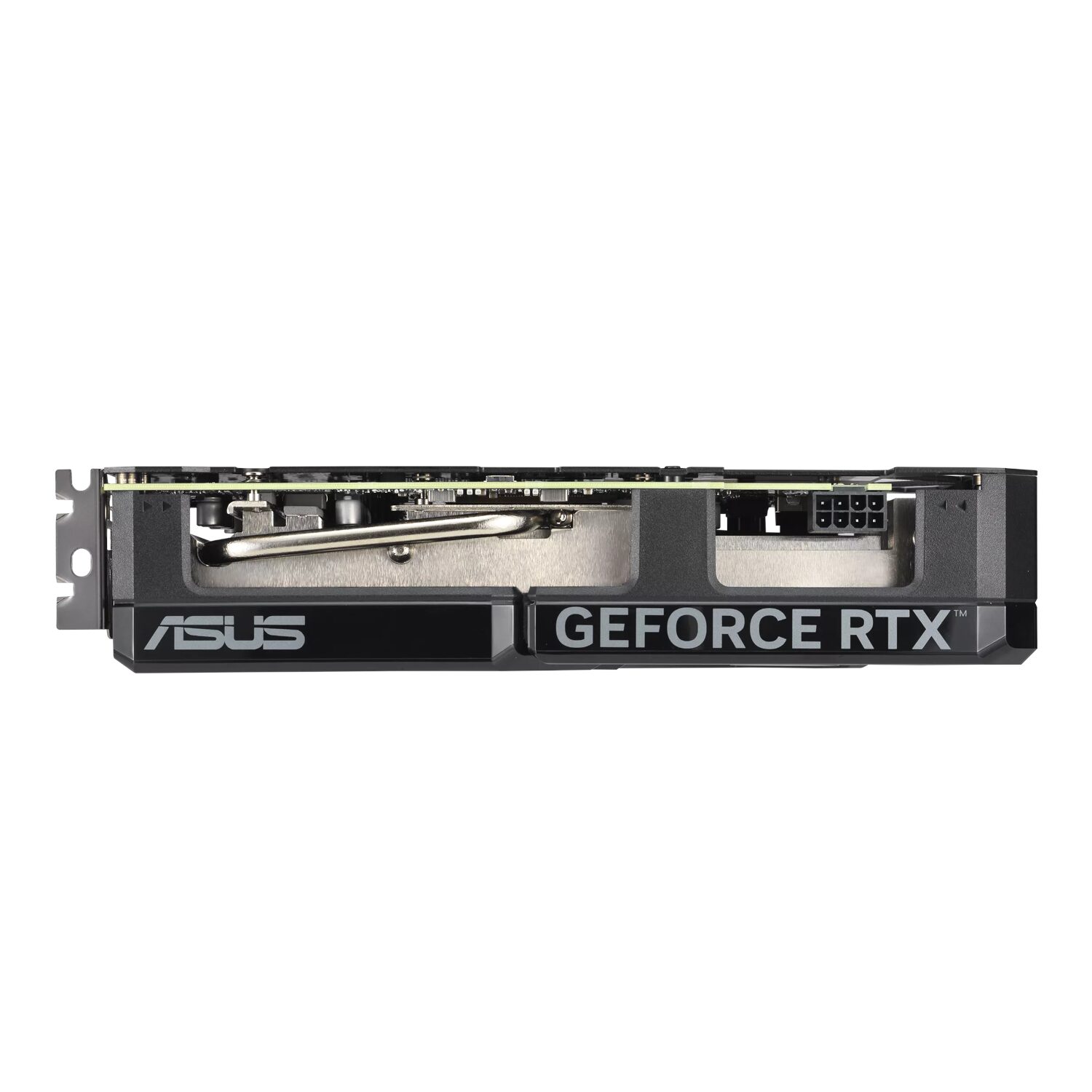

Power is efficiently managed through a single 8-pin connector and a recommended 550W PSU, ensuring compatibility with most modern power supplies. Manufactured using Auto-Extreme Technology, the card benefits from enhanced reliability and consistent quality.

Engineered for performance, cooled for endurance, and designed for compatibility, the ASUS Dual GeForce RTX 4060 EVO OC 8GB GDDR6 Graphics Card is the smart choice for your gaming needs today and is ready for tomorrow.

FEATURES:

• Powered by NVIDIA Ada Lovelace architecture for next-gen performance and efficiency
• 246 AI TOPS for accelerated AI rendering and intelligent performance scaling
• DLSS 3 and 4th Gen Tensor Cores enable up to 4x faster AI-powered frame generation
• 3rd Gen RT Cores deliver up to 2x enhanced real-time ray tracing performance
• OC Edition with boost clock up to 2535 MHz for higher in-game responsiveness
• Dual Axial-tech fans maximise airflow and maintain a compact GPU form factor
• 0dB technology ensures silent operation during low-load tasks and media playback
• Dual ball fan bearings offer up to 2x longer lifespan than sleeve bearing designs
• Protective backplate reinforces structural integrity and safeguards components
• Auto-Extreme Technology enhances build quality through precision automated manufacturing
• Supports up to four displays with HDMI 2.1a and DisplayPort 1.4a outputs
• Compact 2.5-slot design ensures broad compatibility with mid-size PC cases

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 4060
• AI Performance: 246
• Bus Standard: PCI Express 4.0
• OpenGL: OpenGL®4.6
• Video Memory: 8GB GDDR6
• Engine Clock:
• OC mode: 2535 MHz
• Default mode: 2505 MHz (Boost)
• CUDA Core: 3072
• Memory Speed: 17 Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
• Native HDMI 2.1a x1
• Native DisplayPort 1.4a x3
• HDCP Support (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software: ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions: 22.72 x 12.32 x 4.96 cm
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot

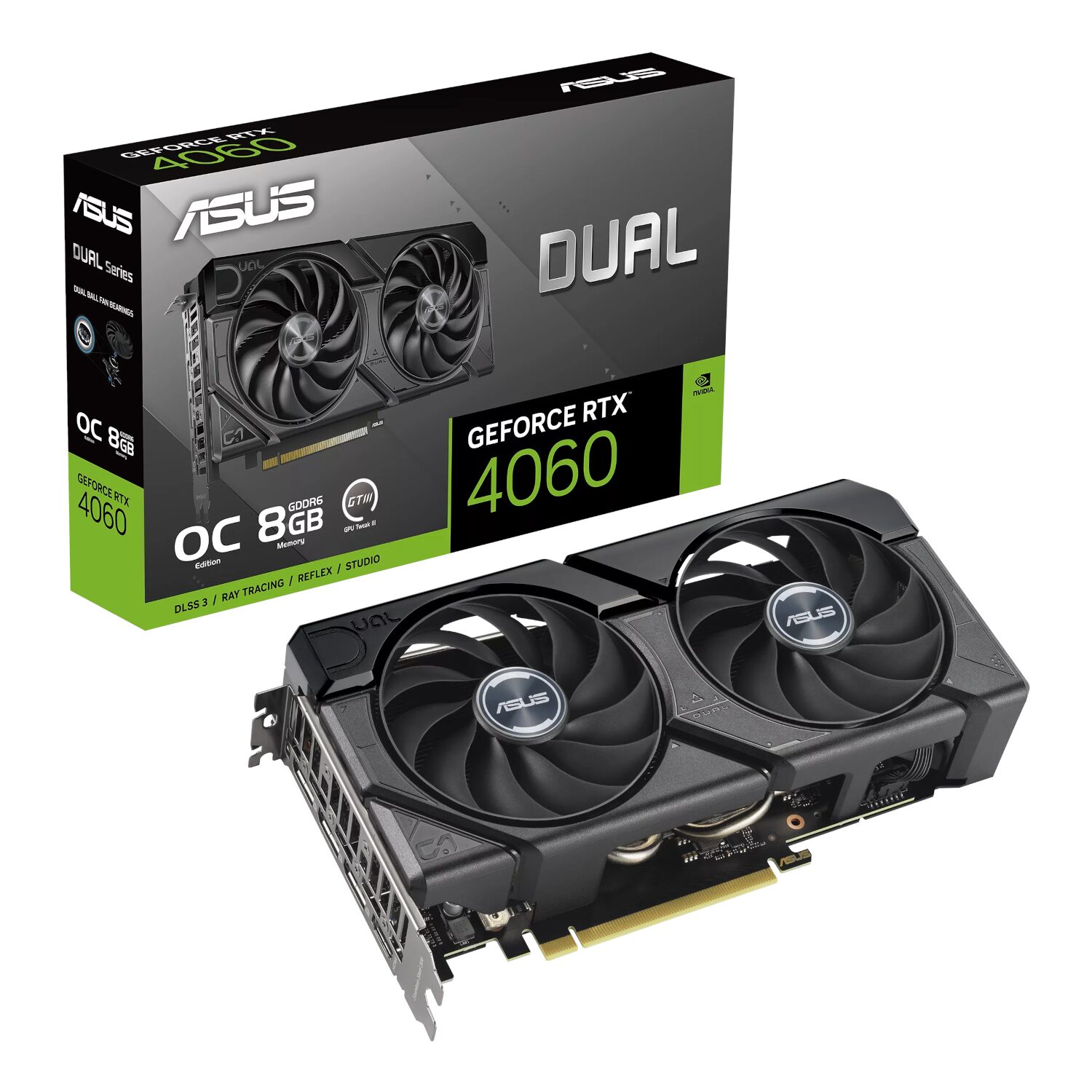

WHAT’S IN THE BOX:

• Asus Dual GeForce RTX 4060 EVO OC 8G GDDR6 Graphics Card – PCIe 4.0 GPU x1
• Speedsetup Manual x1
